Prepare the environment
To prepare for this part of the workshop you will need to:
- Deploying a CloudFormation stack
- Modifying a VPC route table.
These components work together to simulate on-premises DNS forwarding and name resolution.
Deploy the CloudFormation stack

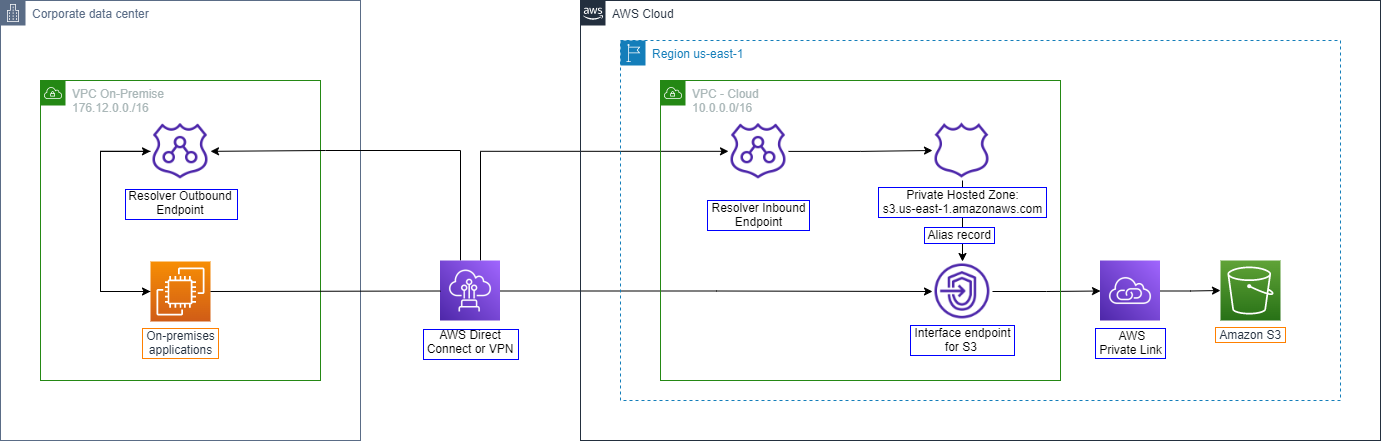

The CloudFormation template will create additional services to support an on-premises simulation:
- One Route 53 Private Hosted Zone that hosts Alias records for the PrivateLink S3 endpoint
- One Route 53 Inbound Resolver endpoint that enables “VPC Cloud” to resolve inbound DNS resolution requests to the Private Hosted Zone
- One Route 53 Outbound Resolver endpoint that enables “VPC On-prem” to forward DNS requests for S3 to “VPC Cloud”

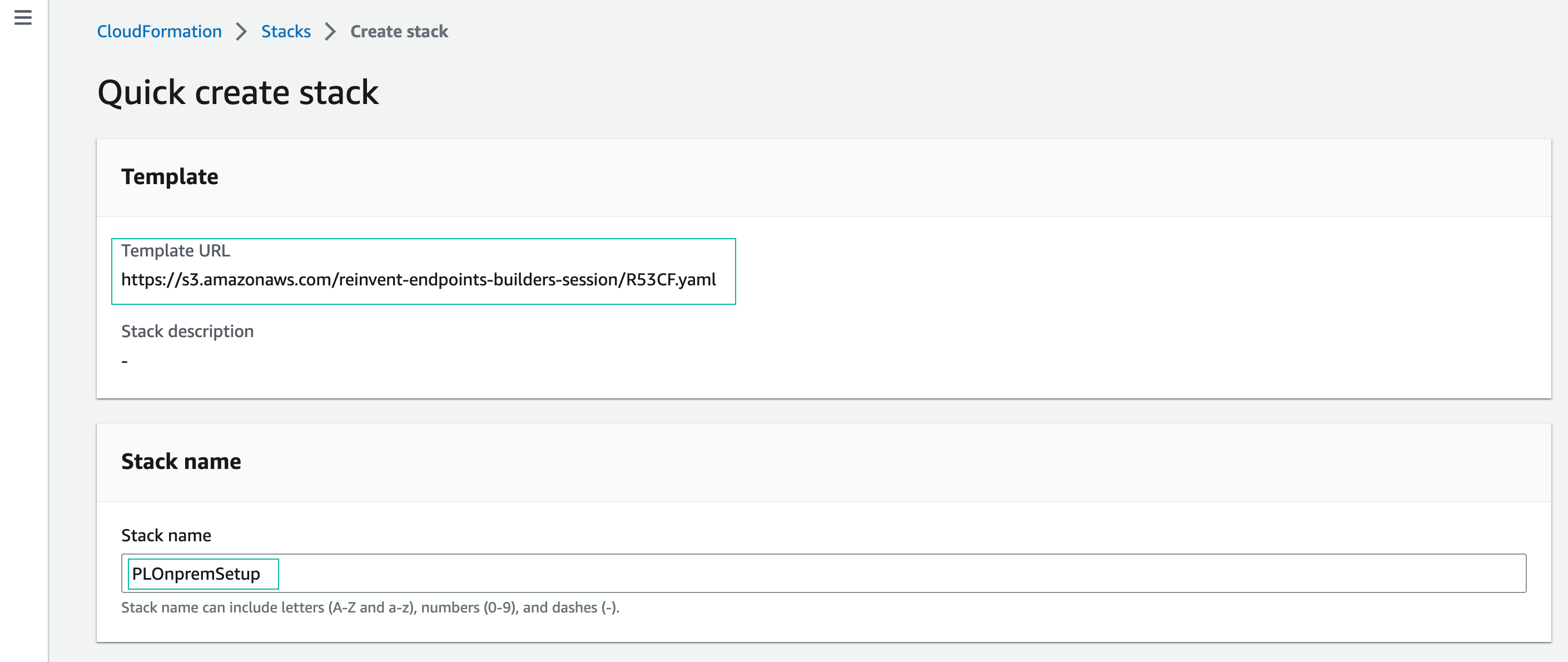

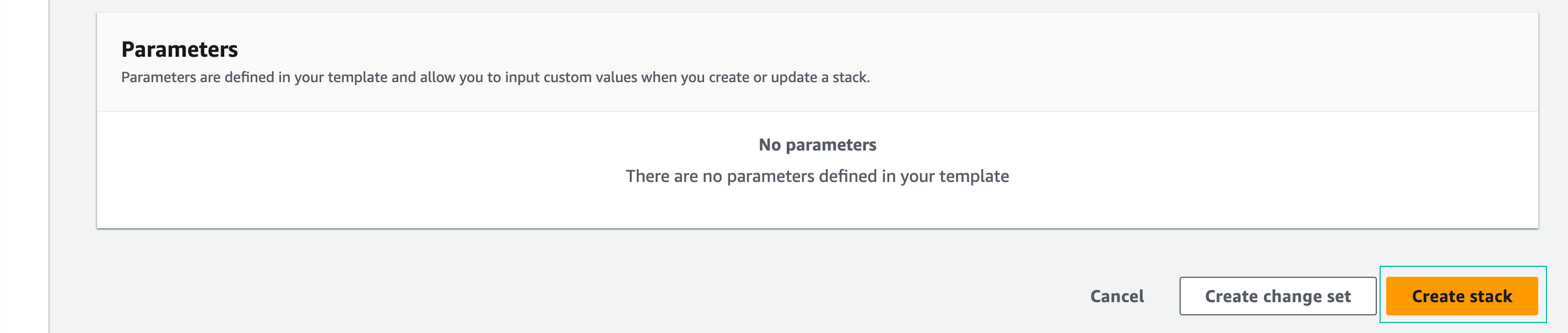

- Click the following link to open the AWS CloudFormation console. The required template will be pre-loaded into the menu. Accept all default and click Create stack.
It may take a few minutes for stack deployment to complete. You can continue with the next step without waiting for the deployemnt to finish.
Update on-premise private route table
This workshop uses a strongSwan VPN running on an EC2 instance to simulate connectivty between an on-premises datacenter and the AWS cloud. Most of the required components are provisioned before your start. To finalize the VPN configuration, you will modify the “VPC On-prem” routing table to direct traffic destined for the cloud to the strongSwan VPN instance.
-
Open the Amazon EC2 console
-

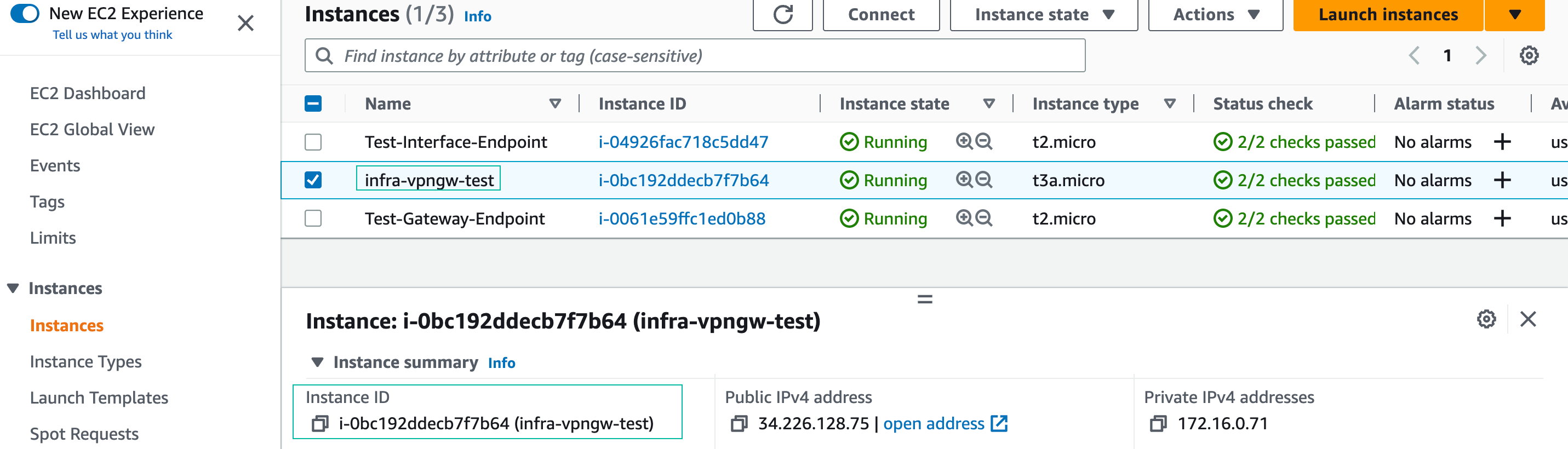

Select the instance named infra-vpngw-test. From the Details tab, copy the Instance ID and paste this into your text editor
-
Navigate to the VPC menu by using the Search box at the top of the browser window.
-

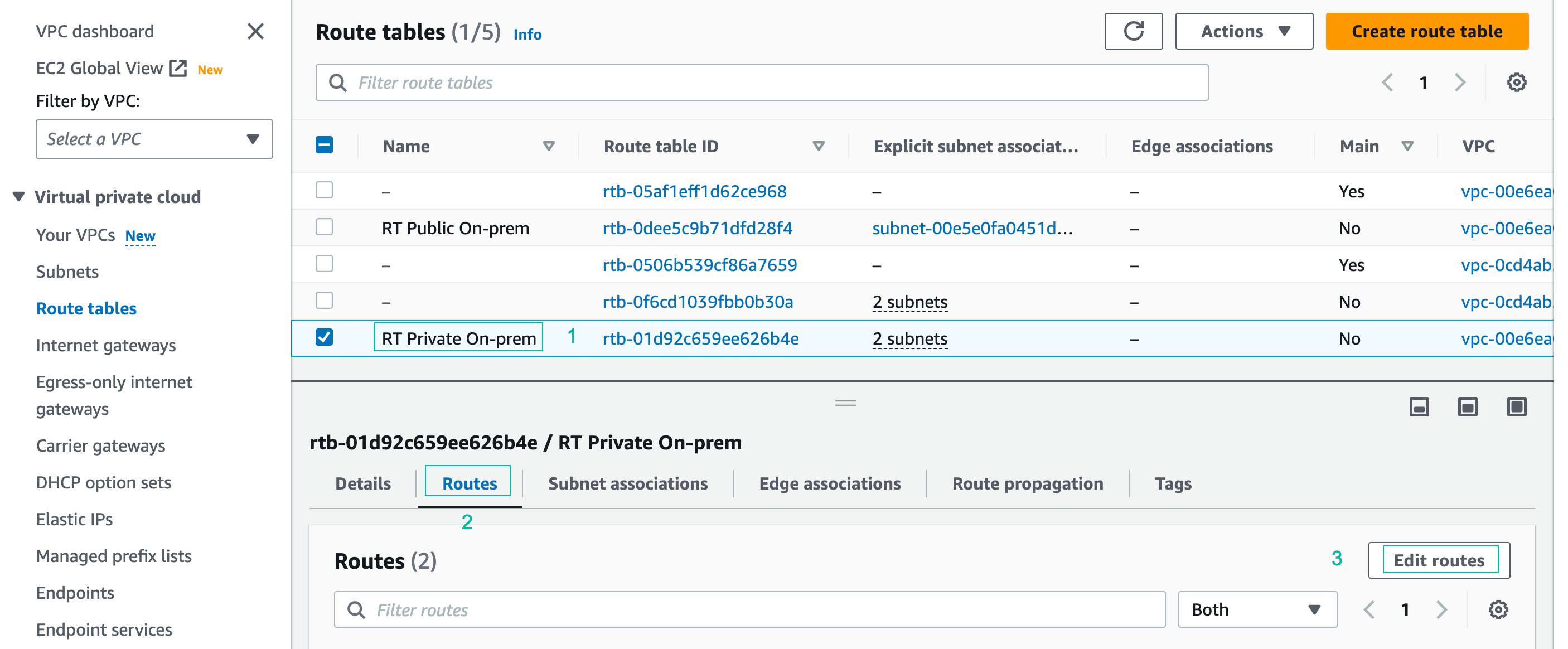

Click on Route Tables, select the RT Private On-prem route table, select the Routes tab, and click Edit Routes.

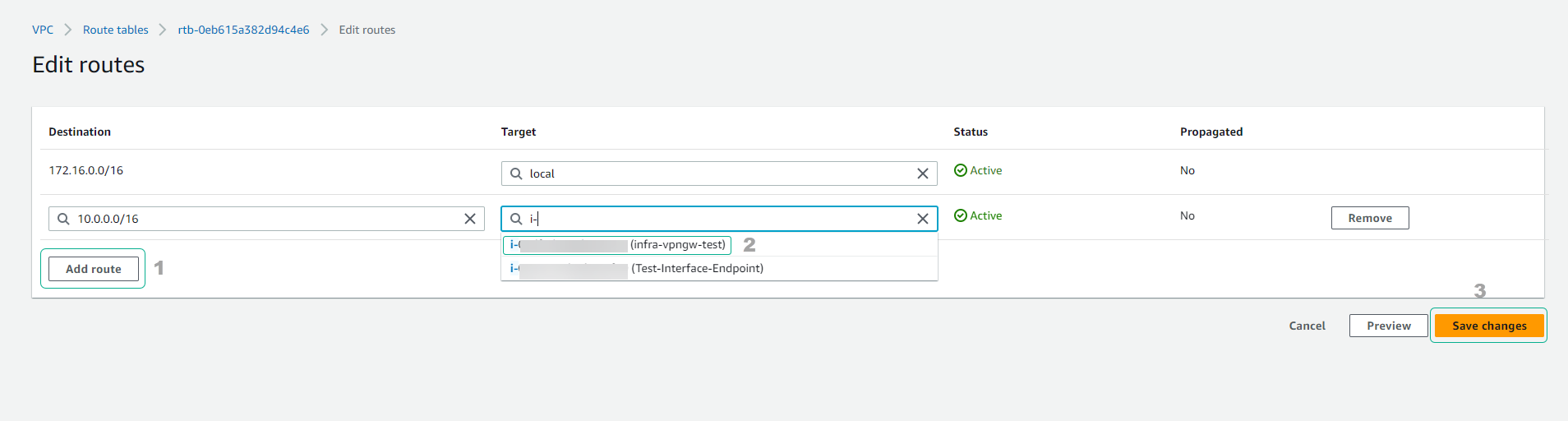

- Click Add route.
- Destination: your Cloud VPC cidr range
- Target: ID of your infra-vpngw-test instance (you saved in your editor at step 1)
- Click Save changes
